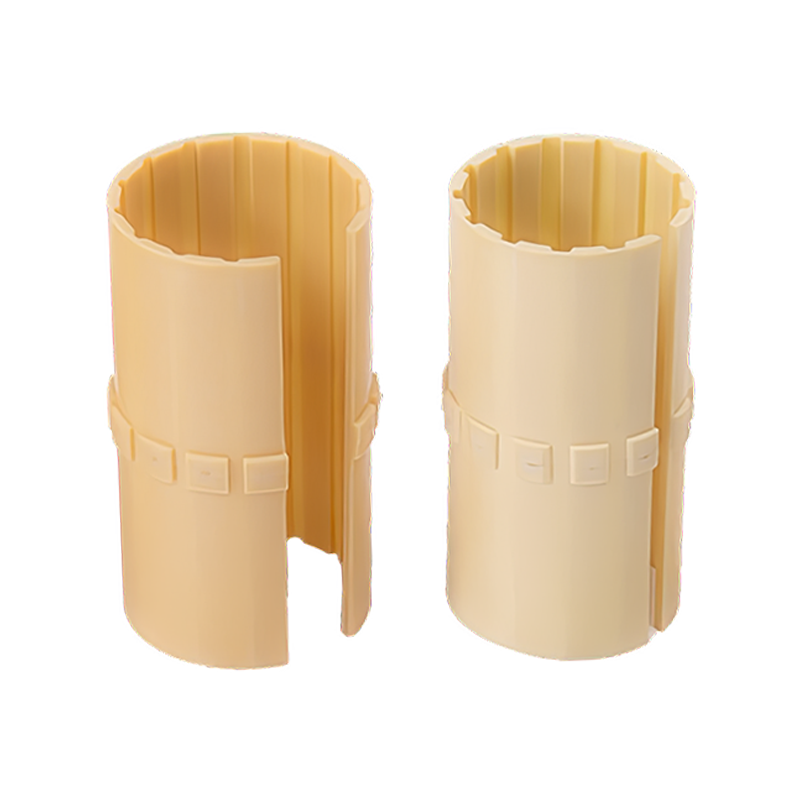

HZ-LIN Sealed engineering plastic bearing sliding film

Ang HZ-LIN Engineering Plastic Bearing Sliding Film ay ginawa mula sa mga advanced na fiber-reinforced polymers na naka-embed na may solid lubricants, na tinitiyak ang pambihirang wear resistance at walang maintenance na operasyon. Ang optimized na timpla nito ng base resin, reinforcing fibers, at micro-encapsulated lubricant particles ay nagbibigay-daan sa pare-parehong pagbabawas ng friction sa iba't ibang load at bilis.

Materyal: High-strength engineering plastic matrix (hal., POM, PA66) na may mga naka-embed na solid lubricant (PTFE, graphite).

Disenyo:
Self-lubricating sa pamamagitan ng kinokontrol na paglabas ng mga lubricant particle sa ilalim ng paggalaw.
Corrosion-resistant, chemical-inert, at immune sa pagpasok ng alikabok.
Magaan na may mataas na lakas ng compressive (hanggang sa 120MPa static load).

Pagganap:
Mababang friction coefficient (μ=0.05–0.15) sa -40°C hanggang 120°C.
Napakahusay na halaga ng PV (≤1.5 MPa·m/s) para sa mga dynamic na application.
Sumisipsip ng matitigas na kontaminant nang hindi nakompromiso ang integridad ng ibabaw.
Mga Application: Conveyor system, packaging machinery, agricultural pivots, at low-speed rotary joints.

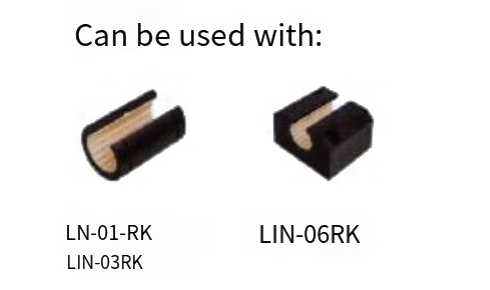

Angkop para sa pagsuporta sa mga shaft
Sukat: mm

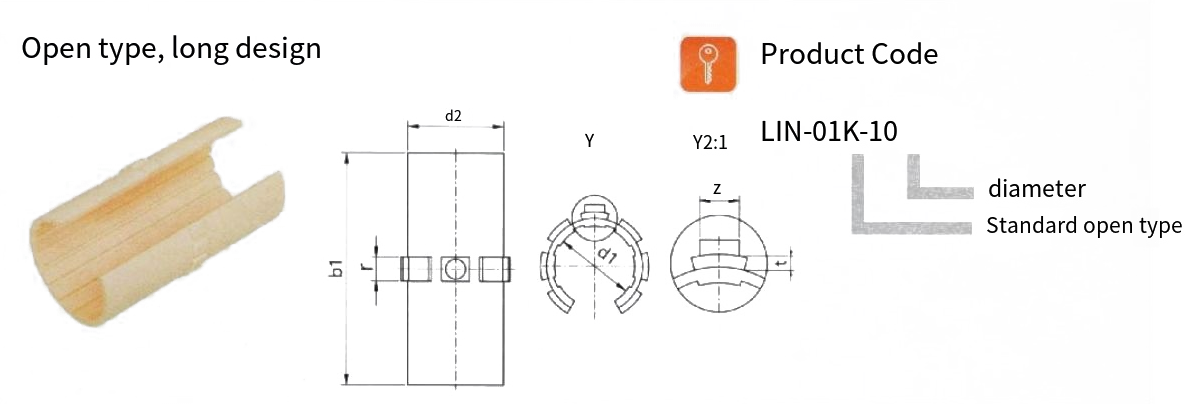

Code ng Produkto	d1	pagpaparaya	D2	b1	r	t	Sa	Timbang g
LIN-01-10	10	0.030 0.070	12	28	3	0.8	2.5	0.9
LIN-01-12	12	0.030 0.070	14	31	3	0.8	3	1.16
LIN-01-16	16	0.030 0.070	18	35	3.5	0.8	3.5	1.70
LIN-01-20	20	0.030 0.070	23	44	5	0.8	3.5	4.16
LIN-01-25	25	0.030 0.070	28	57	5	0.8	A	6.98
LIN-01-30	30	0.040 0.085	34	67	5	0.8	4	12.35
LIN-01-40	40	0.040 0.065	44	79	6	1.3	5	20.18
LIN-01-50	50	0.050 0.100	55	99	7	1.3	6	38.60

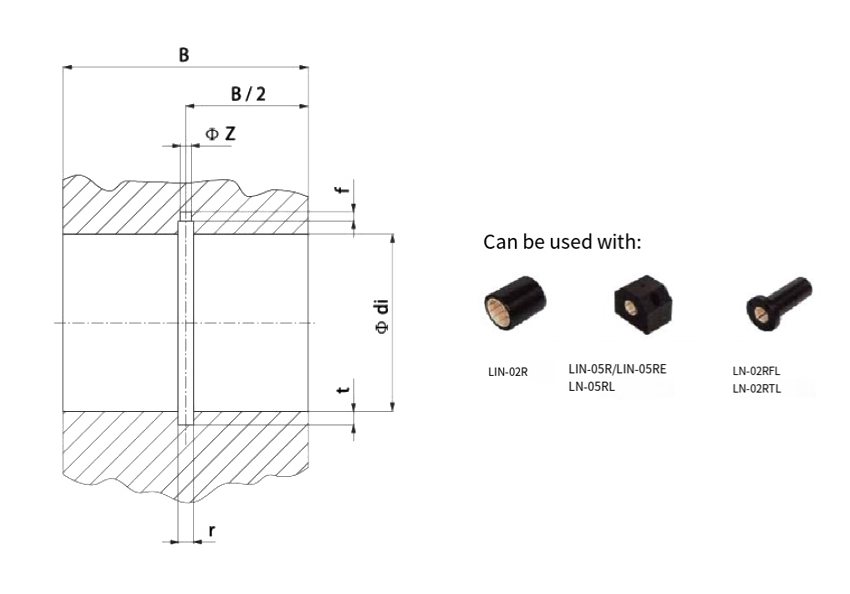

Assembly drawing test para sa base hole ng sliding film LN-01
Sukat: mm

Code ng Produkto	Axis Φ	ng H7	B h10	W 0.2	r	t	f	z
LIN-01-10	10	12	29	7.3	3	1.0	1.0	2.6
LIN-01-12	12	14	32	9	3	1.0	1.5	3.1
LIN-01-16	16	18	36	11.6	3.5	1.0	1.7	3.6
LIN-01-20	20	23	45	12	5	1.0	2.0	3.6
LIN-01-25	25	28	58	14.5	5	1.0	2.0	4.1
LIN-01-30	35	39	70	16.6	5	1.0	2.0	4.1
LIN-01-40	40	44	80	21	6	1.5	2.5	5.1
LIN-01-50	50	55	100	25.5	7	1.5	2.5	6.1

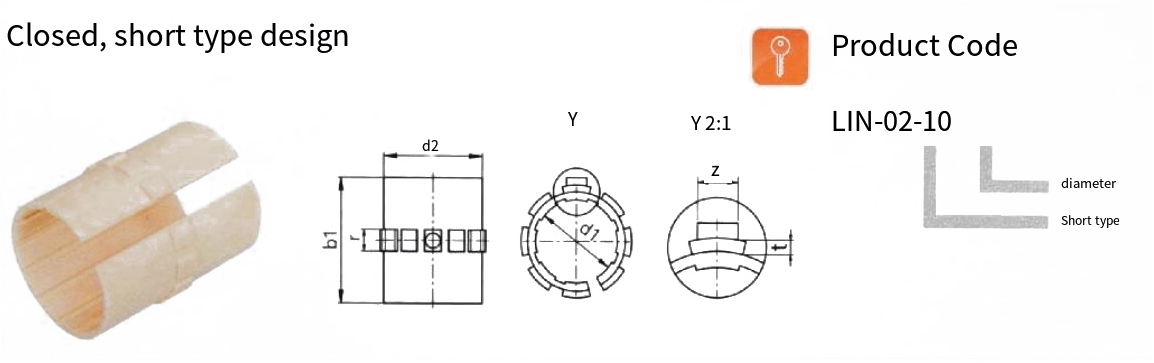

LIN sliding film

Sukat: mm

Code ng produkto	d1	Pampublikong gawain	D2	b1	r	t	z	F maximum na halaga dynamics P=5MPa[N]	F maximum na halaga static na estado P=35MPa[N]	Timbang g
LIN-02-10	10	0.030 0.070		25		0.8	2.5	650		1.02
LIN-02-12	12	0.030 0.070	14	27	3	0.8	3	840	5880	1.27
LIN-02-16	16	0.030 0.070	18	29	3.5	0.8	3.5	1200	8400	1.82
LIN-02-20	20	0.030 0.070	23	29	5	0.8	3.5	1500	10600	3.27
LIN-02-25	25	0.030 40.070	28	39	5	0.8	4	2500	17500	5.75
LIN-02-30	30	0.040 0.065	34	49	5	0.8	4	3750	26250	11.28
LIN-02-35	35	0.040 0.065	39	59	5	1.3	4	6000	42000	17.94
LIN-02-40	40	0.040 0.086	44	59	6	1.3	6	7200	50400	27.00
LIN-02-50	50	0.050 0.100	56	69	7	1.3	6	8750	61250	32.56

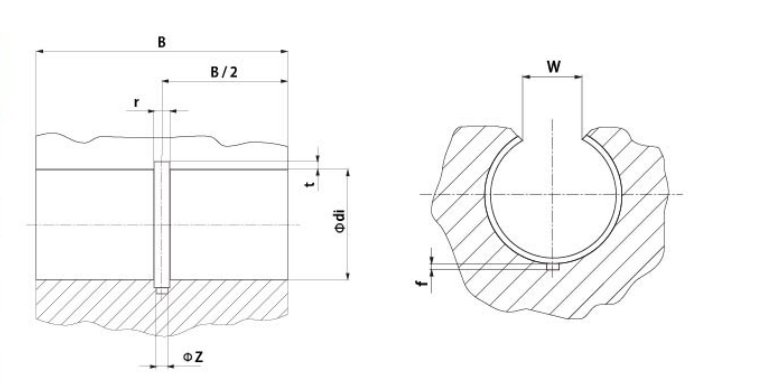

Assembly drawing test para sa base hole ng sliding film LN-02
Sukat: mm

Code ng produkto	Axle Φ	di H7	B h10	r	t	f	z
LIN-02-10	10	12	26	3	1.0	1.0	2.6
LIN-02-12	12	14	28	3	1.0	1.5	3.1
LIN-02-16	16	18	30	3.5	1.0	1.7	3.6
LN-02-20	20	23	30	5	1.0	2.0	3.6
LIN-02-25	25	28	40	5	1.0	2.0	4.1
LIN-02-30	30	34	50	5	1.0	2.0	4.1
LIN-02-35	35	39	60	6	1.5	2.5	5.1
LIN-02-40	40	44	60	7	1.5	2.5	6.1
LIN-02-50	50	55	70	7	1.5	2.5	6.1
